Model:Type 2

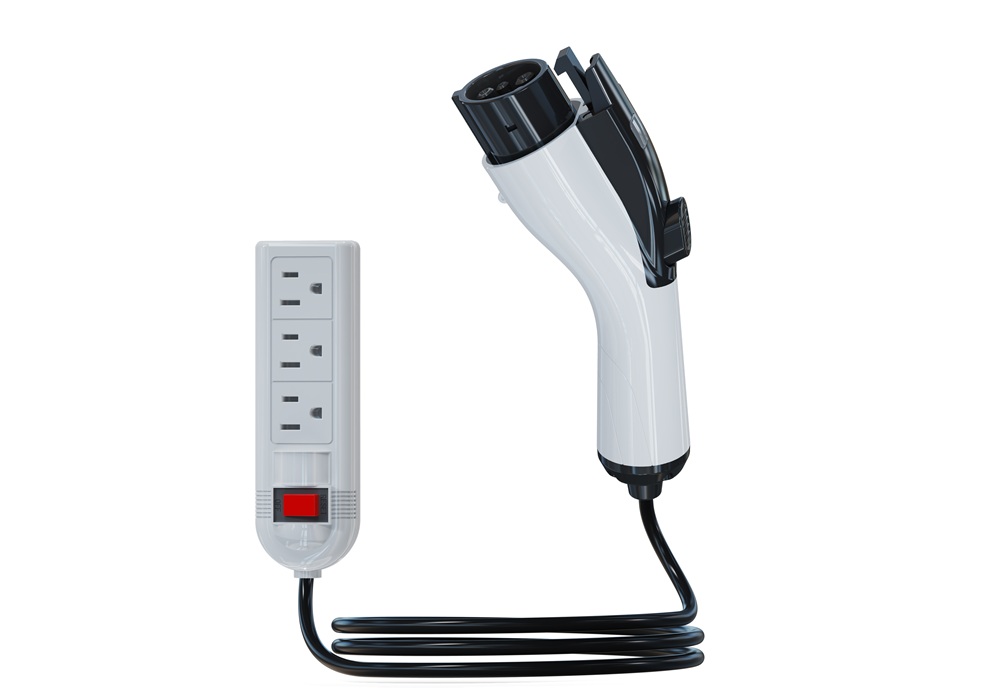

Type 2 Discharging Connector, V2L

no data
Product Details
Electrical Parameters  Discharge Voltage: AC 230V
Rate Current: 16A MAX
Terminal Temp Rise: ＜50K
Withstand Voltage: 1500V
Material Parameters Case Material: PC+PA66+GF25%
Conductor: Copper alloy with silver plating
Cable Length: 5 Meter
Coupled Insertion Force： 45N<F<100N
No-Load Plugin/Out: >10,000 times
Environmental Parameters  Work Temperature: -30℃~+50°C
 Work Humidity: 5%~95%
Work Altitude: ≤ 2000 Meter
IP Code IP55  (Connector)
Size&Package Product Size: L:250.0*W:250.0*H:70.0mm
 Inner Box: L:260.0*W:260.0*H:90.0mm
Outer Carton:(6 pieces) L:600.0*W:275.0*H:275.0mm
 Net Weight: (1 pieces) ≤ 3KG
Electrical Parameters  Discharge Voltage: AC 230V
Rate Current: 16A MAX
Terminal Temp Rise: ＜50K
Withstand Voltage: 1500V
Material Parameters Case Material: PC+PA66+GF25%
Conductor: Copper alloy with silver plating
Cable Length: 5 Meter
Coupled Insertion Force： 45N<F<100N
No-Load Plugin/Out: >10,000 times
Environmental Parameters  Work Temperature: -30℃~+50°C
 Work Humidity: 5%~95%
Work Altitude: ≤ 2000 Meter
IP Code IP55  (Connector)
Size&Package Product Size: L:250.0*W:250.0*H:70.0mm
 Inner Box: L:260.0*W:260.0*H:90.0mm
Outer Carton:(6 pieces) L:600.0*W:275.0*H:275.0mm
 Net Weight: (1 pieces) ≤ 3KG
