Model:Z1A
Z1A 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code
Next: No more data
Product Details
| Basic Information | Product Model: | Z1A Series (7.6KW / 9.6KW / 12KW ) |
| Input Voltage: | 240Vac±15% | |
| Rated Current: | 50A MAX | |
| Rated Power: | 7.6KW/32A;9.6KW/40A;12KW/50A | |
| Power Supply: | Double Fire Line Wiring | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | NACS | |
| Reference Standards: | NACS,UL2594,UL2231-2 | |
| Power Plug: | NEMA 14-50;Hardwire -Copper pins | |
| Charging Cable: | 3*10AWG+1*18AWG(32A): 2*9AWG+1*10AWG+1*18AWG(40A) 2*8AWG+1*10AWG+1*18AWG(50A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | 3.5” LCD Indicator | |
| Communication Interface | Bluetooth ; Wl-Fl ; Ethernet ; 4G | |
| Multiple application | OCPP1.6J ; RFlD Card ; QR Code ; One-key Lid Opening | |
| Working Environment | Working Temp.: | -22°F~+122°F |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | Type 4 for Controller Box; Type 4x for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20 | ||
| Dimension & Package | Control Box Size: | L338*W240*H113.2mm / L13.31"*W9.45"*H4.46" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L410*W290*H240 mm / L16.14"*W11.42"*H9.45" | |
| Outer Carton: | L650*W430*H275 mm / L25.59"*W16.93"* H10.83" (2 pieces) | |
| Net Weight: | ≤ 6.5KG (1 pieces) | |
| Basic Information | Product Model: | Z1A Series (7.6KW / 9.6KW / 12KW ) |
| Input Voltage: | 240Vac±15% | |
| Rated Current: | 50A MAX | |
| Rated Power: | 7.6KW/32A;9.6KW/40A;12KW/50A | |
| Power Supply: | Double Fire Line Wiring | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | NACS | |
| Reference Standards: | NACS,UL2594,UL2231-2 | |
| Power Plug: | NEMA 14-50;Hardwire -Copper pins | |
| Charging Cable: | 3*10AWG+1*18AWG(32A): 2*9AWG+1*10AWG+1*18AWG(40A) 2*8AWG+1*10AWG+1*18AWG(50A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | 3.5” LCD Indicator | |
| Communication Interface | Bluetooth ; Wl-Fl ; Ethernet ; 4G | |
| Multiple application | OCPP1.6J ; RFlD Card ; QR Code ; One-key Lid Opening | |
| Working Environment | Working Temp.: | -22°F~+122°F |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | Type 4 for Controller Box; Type 4x for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20 | ||
| Dimension & Package | Control Box Size: | L338*W240*H113.2mm / L13.31"*W9.45"*H4.46" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L410*W290*H240 mm / L16.14"*W11.42"*H9.45" | |
| Outer Carton: | L650*W430*H275 mm / L25.59"*W16.93"* H10.83" (2 pieces) | |
| Net Weight: | ≤ 6.5KG (1 pieces) | |
Next: No more data
Related Products

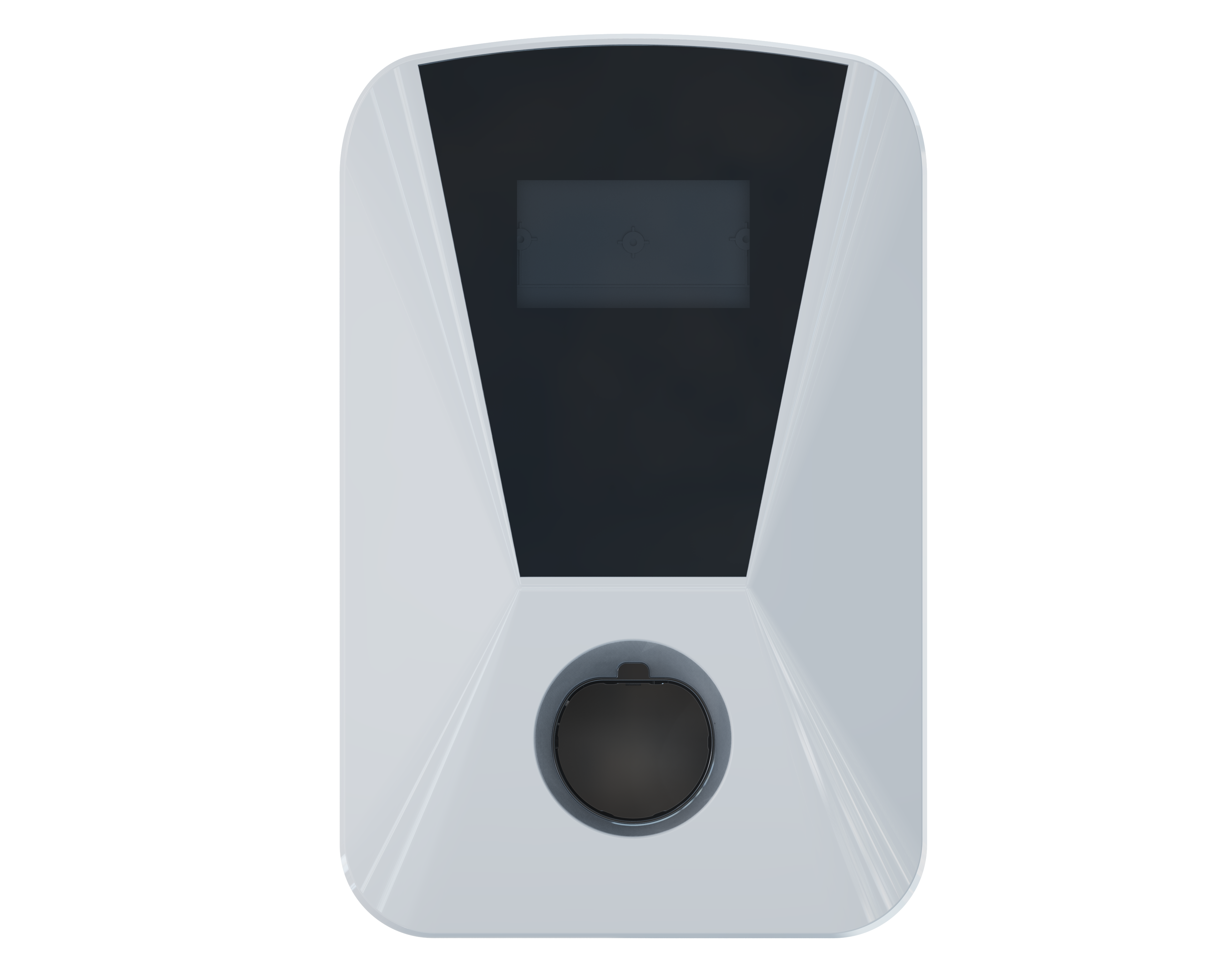

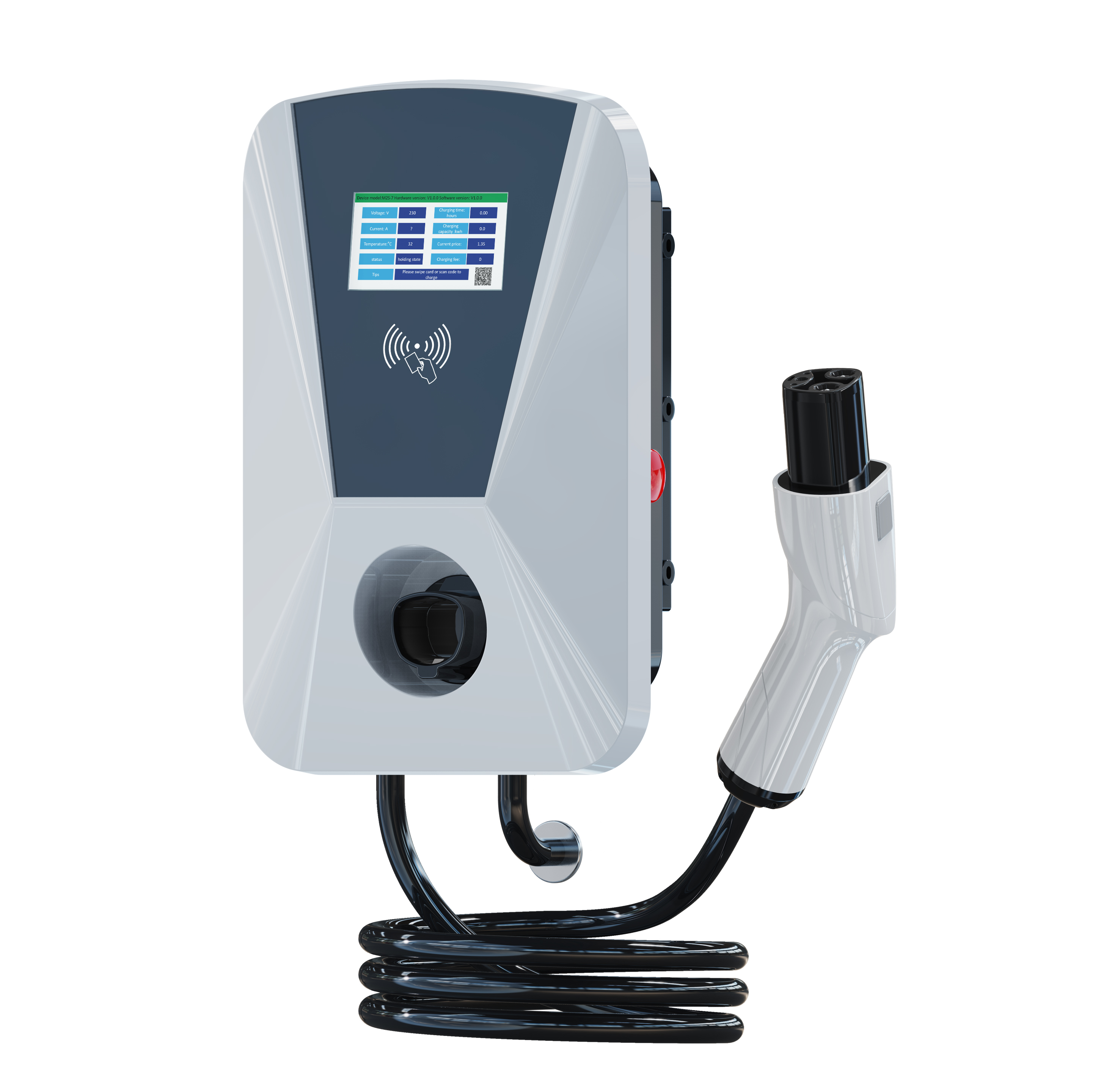

Z3B 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z3B
Z3B 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code

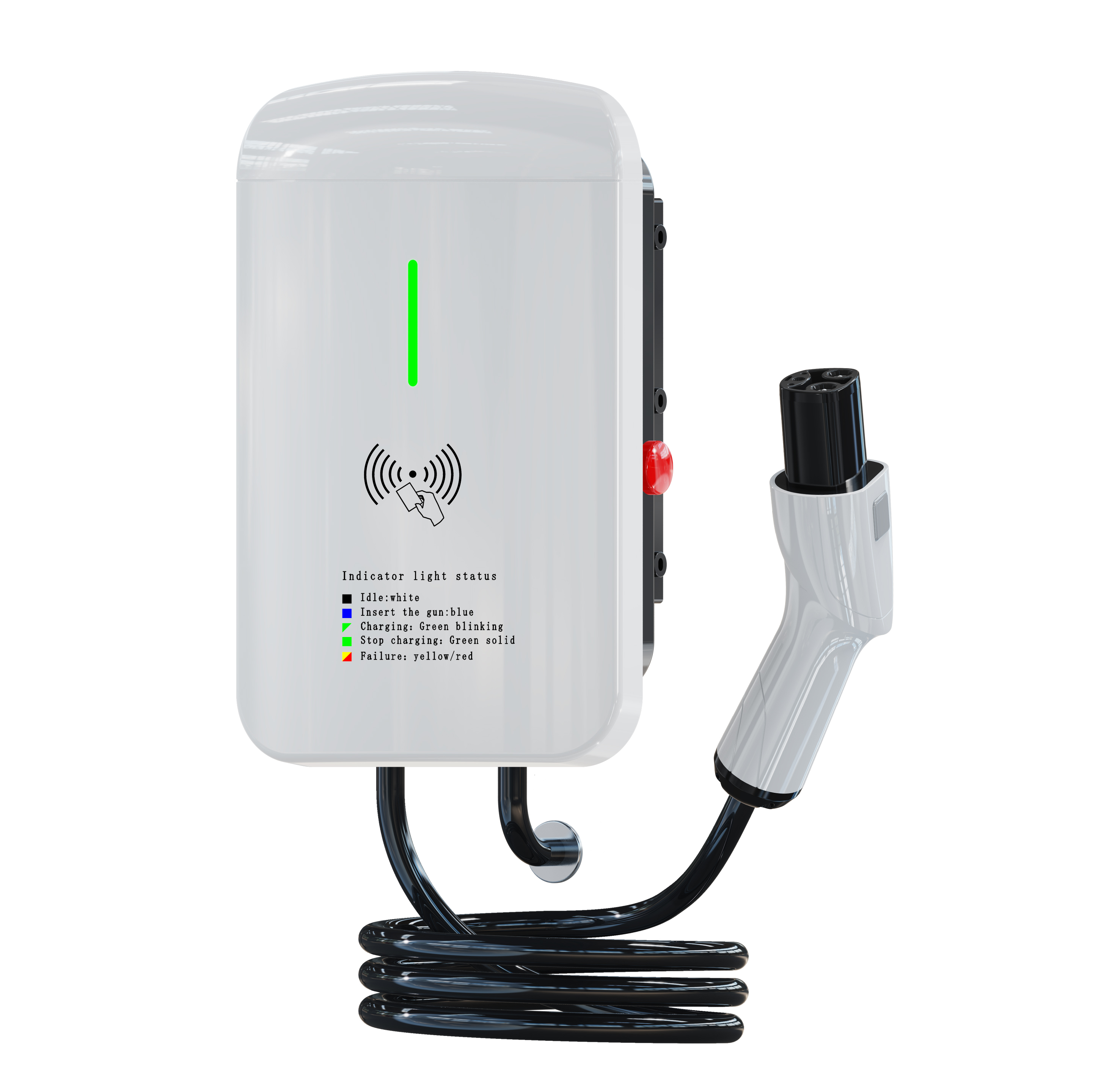

Z3A 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z3A
Z3A 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code

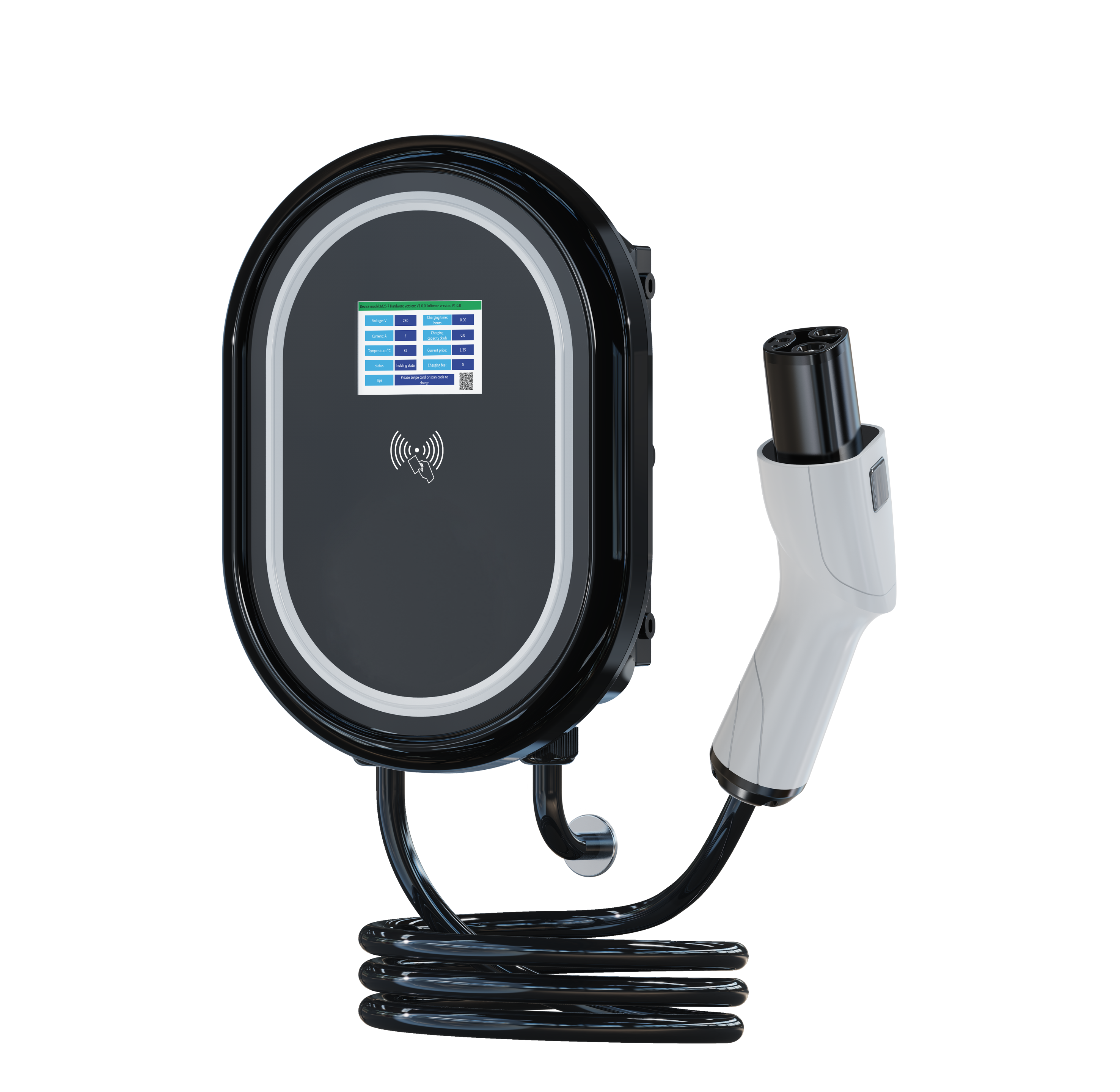

Z1B 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z1B
