Model:Z3C
OEM Customized Electric Car Wall-mounted Charging Station New Energy AC Pile Type 2 7KW 11KW 22KW Wallbox
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Product Details
| Basic Information | Product Model: | Z3C Series ( 3.5KW / 7KW / 11KW / 22KW ) |
| Input Voltage: | 230Vac±15% / 400Vac±15% | |
| Rated Current: | 16A / 32A | |
| Rated Power: | 3.5KW/16A;7KW/32A;11KW/16A:22KW/32A | |
| Power Supply: | 1 Phase / 3 Phase | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | IEC 62196-2 (Type 2) | |
| Reference Standards: | IEC 61851-1、IEC 62752、IEC 62196-2 | |
| Power Plug: | Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase / CEE Red -5 Pin-16A- 3Phase / CEE Red -5 Pin-32A-3Phase |
|
| Charging Cable: | 3 x 2.5 mm2 + 1 x 0.5 mm2 ( 1 Phase/16A) 3 x 6.0 mm2 + 1 x 0.5 mm2 ( 1 Phase/ 32A) 5 x 2.5 mm2 + 1 x 0.5 mm2 ( 3 Phase/16A) 5 x 6.0 mm2 + 1 x 0.5 mm2 ( 3 Phase/32A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator + 4.3” LCD Indicator | |
| Communication Interface | Bluetooth ; Wl-Fl ; Ethernet ; 4G | |
| Multiple application | OCPP1.6J ; RFlD Card ; QR Code ; Built In MID Meter(Option) | |
| Working Environment | Working Temp.: | -30°C~+50°C |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | ||
| Dimension & Package | Control Box Size: | L384.8*W249.8*H132.0mm / L15.15"*W9.83"*H5.20" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L485*W310*H230 mm / L19.09"*W12.21"*H9.06" | |
| Outer Carton: | L650*W505*H265 mm / L25.59"*W19.88"* H10.43" (2 pieces) | |
| Net Weight: | ≤ 6.5KG (1 pieces) | |
| Basic Information | Product Model: | Z3C Series ( 3.5KW / 7KW / 11KW / 22KW ) |
| Input Voltage: | 230Vac±15% / 400Vac±15% | |
| Rated Current: | 16A / 32A | |
| Rated Power: | 3.5KW/16A;7KW/32A;11KW/16A:22KW/32A | |
| Power Supply: | 1 Phase / 3 Phase | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | IEC 62196-2 (Type 2) | |
| Reference Standards: | IEC 61851-1、IEC 62752、IEC 62196-2 | |
| Power Plug: | Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase / CEE Red -5 Pin-16A- 3Phase / CEE Red -5 Pin-32A-3Phase |
|
| Charging Cable: | 3 x 2.5 mm2 + 1 x 0.5 mm2 ( 1 Phase/16A) 3 x 6.0 mm2 + 1 x 0.5 mm2 ( 1 Phase/ 32A) 5 x 2.5 mm2 + 1 x 0.5 mm2 ( 3 Phase/16A) 5 x 6.0 mm2 + 1 x 0.5 mm2 ( 3 Phase/32A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator + 4.3” LCD Indicator | |
| Communication Interface | Bluetooth ; Wl-Fl ; Ethernet ; 4G | |
| Multiple application | OCPP1.6J ; RFlD Card ; QR Code ; Built In MID Meter(Option) | |
| Working Environment | Working Temp.: | -30°C~+50°C |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | ||
| Dimension & Package | Control Box Size: | L384.8*W249.8*H132.0mm / L15.15"*W9.83"*H5.20" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L485*W310*H230 mm / L19.09"*W12.21"*H9.06" | |
| Outer Carton: | L650*W505*H265 mm / L25.59"*W19.88"* H10.43" (2 pieces) | |
| Net Weight: | ≤ 6.5KG (1 pieces) | |
Related Products
Customized Color AC EV Charger Electric Car Wall Box 4.3 Inch LCD AC Charging Wall Mounted Car Charging Station-Z3B
Customized Color AC EV Charger Electric Car Wall Box 4.3 Inch LCD AC Charging Wall Mounted Car Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
7kw/11kw/22kw Wall-mounted Charging Pile With Plug，APP Control Level 2 EV Charger-Z3A
7kw/11kw/22kw Wall-mounted Charging Pile With Plug，APP Control Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Wall Mount Level 2 230 Volt Charger，Level 2 EV Charger Fireproof PC Shell AC Electric Vehicle Charger-Z1B
Wall Mount Level 2 230 Volt Charger，Level 2 EV Charger Fireproof PC Shell AC Electric Vehicle Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
7kw/11kw/22kw Type 2 Charging Cable,16/32A Adjustable Current, Charging Cable Electric Car Type 2 With 3.5 Inch LCD-Z1A
7kw/11kw/22kw Type 2 Charging Cable,16/32A Adjustable Current, Charging Cable Electric Car Type 2 With 3.5 Inch LCD
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
AC EV Charger 3.5 Inch Wallbox Electric Vehicle Fast Charging Pile EU Standard Smart App Charging Station-Z6C
AC EV Charger 3.5 Inch Wallbox Electric Vehicle Fast Charging Pile EU Standard Smart App Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Type 2 7kw/11kw/22kw Wall-mounted Fast Charging Pile Electric Car AC EV Charging Station-Z6A
Type 2 7kw/11kw/22kw Wall-mounted Fast Charging Pile Electric Car AC EV Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code

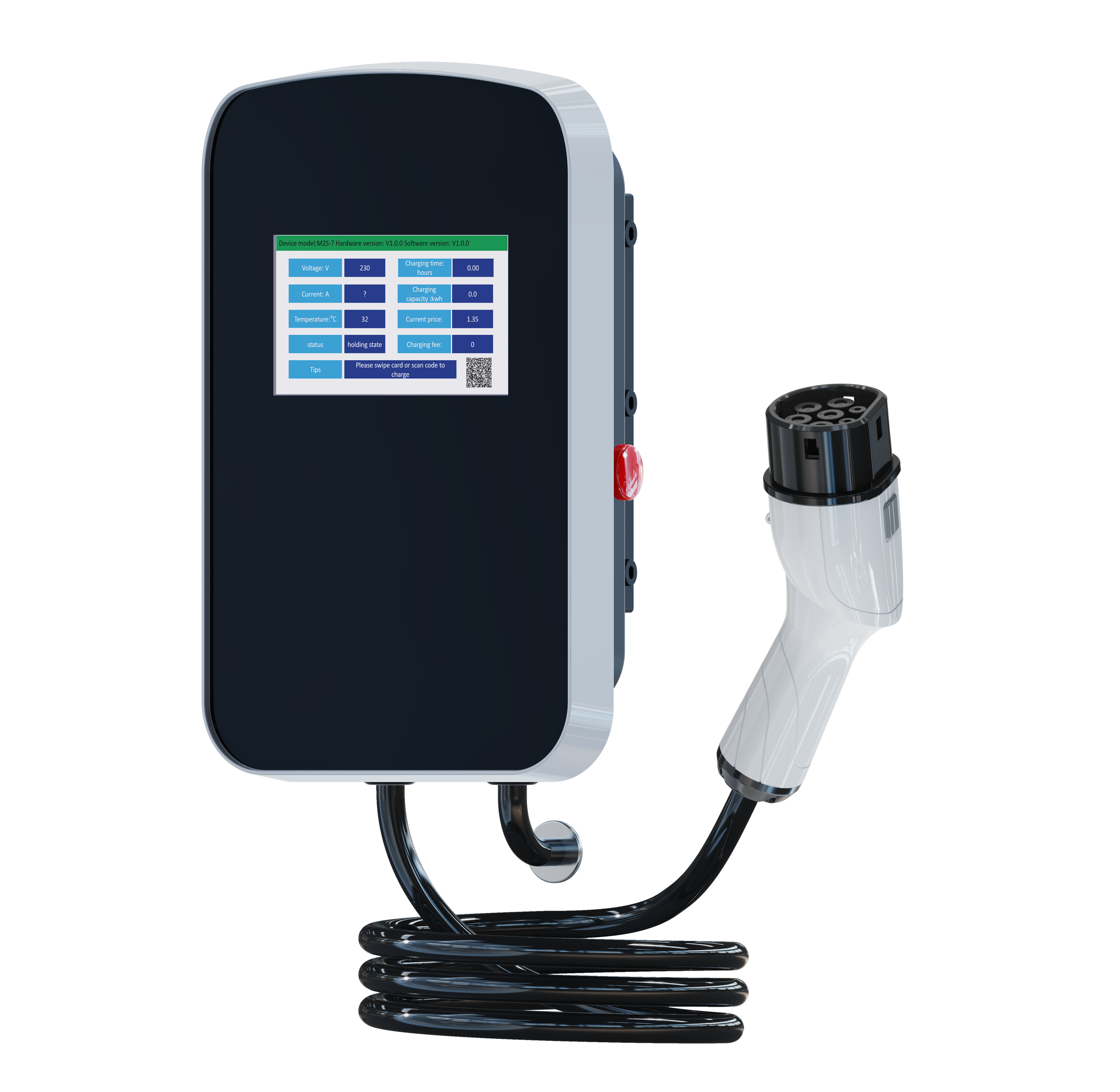

Type 2 AC EV Charger 7Kw 11Kw 22Kw Wallbox Electric Vehicle Fast Charging Pile Wall-mounted Electric Car AC EV Charging Station-Z3F
