Model:Z7B

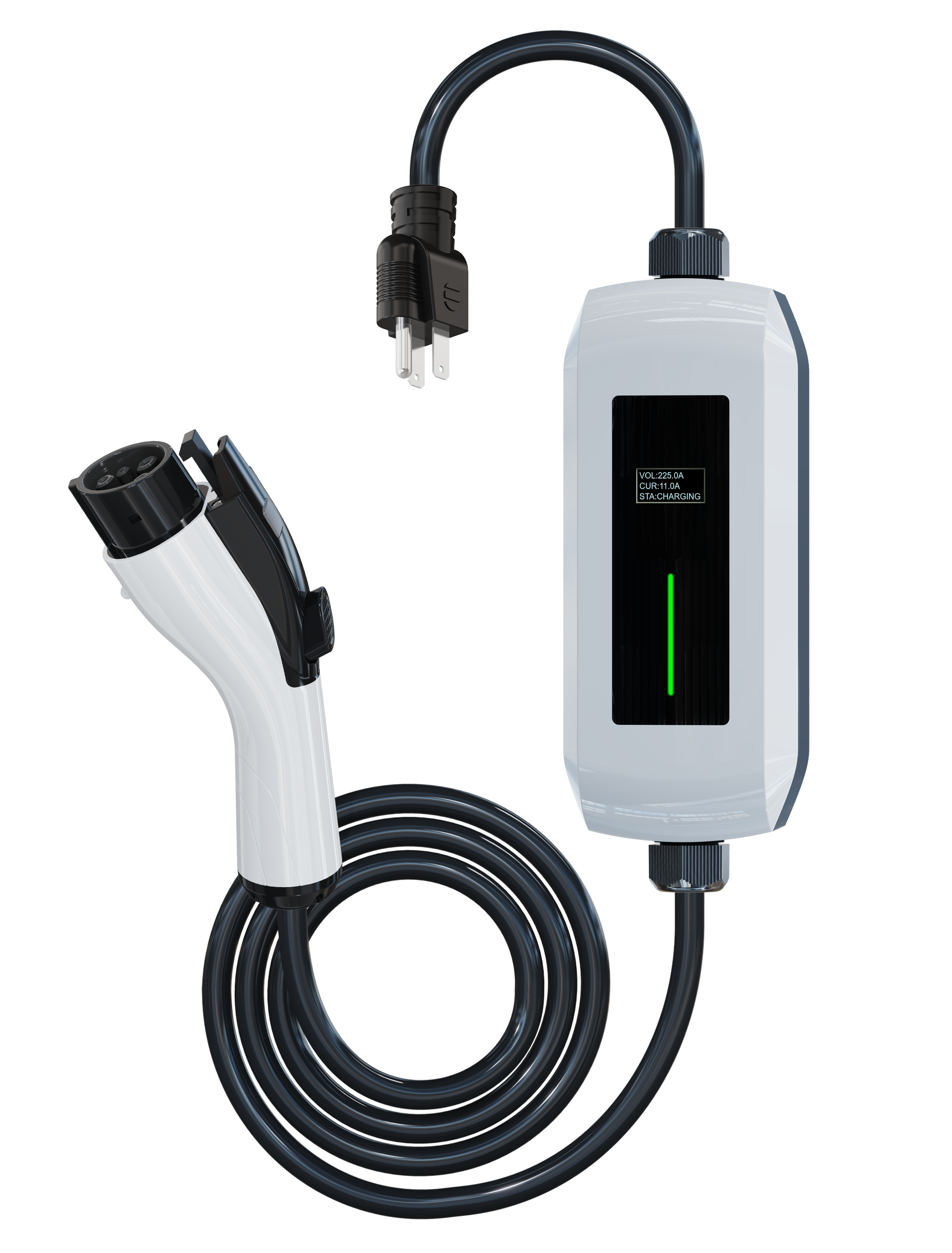

High Quality Mobile EV Charger Type 1（J1772)& Nacs Portable EV Car Charger
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Previous: No more data
Product Details
| Basic Information | Product Model: | Z7B Series (3.5KW / 7KW / 9.6KW ) |
| Input Voltage: | 240Vac±15% | |
| Rated Current: | 40A MAX | |
| Rated Power: | 3.5KW/16A;7KW/32A;9.6KW/40A | |
| Power Supply: | Double Fire Line Wiring | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | SAE J1772(Type 1) | |
| Reference Standards: | SAE J1772,UL2594,UL2231-2,NACS | |
| Power Plug: | NEMA 5-15;NEMA 6-20;NEMA 14-50 | |
| Charging Cable: | 3*14AWG+1*18AWG(16A) 3*10AWG+1*18AWG(32A): 2*9AWG+1*10AWG+1*18AWG(40A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator | |
| Communication Interface | Bluetooth ; WI-FI | |
| Working Environment | Working Temp.: | -22°F~+122°F |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | Type 4 for Controller Box; Type 4x for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20 | ||
| Dimension & Package | Control Box Size: | L281*W100*H66 mm / L11.06"*W3.94"*H2.60" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L410*W260*H200 mm / L16.14"*W10.24"*H7.87" | |
| Outer Carton: | L545*W430*H470 mm / L21.46"*W16.93"* H18.51" (4 pieces) | |
| Net Weight: | ≤ 5KG (1 pieces) | |
| Basic Information | Product Model: | Z7B Series (3.5KW / 7KW / 9.6KW ) |
| Input Voltage: | 240Vac±15% | |
| Rated Current: | 40A MAX | |
| Rated Power: | 3.5KW/16A;7KW/32A;9.6KW/40A | |
| Power Supply: | Double Fire Line Wiring | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | SAE J1772(Type 1) | |
| Reference Standards: | SAE J1772,UL2594,UL2231-2,NACS | |
| Power Plug: | NEMA 5-15;NEMA 6-20;NEMA 14-50 | |
| Charging Cable: | 3*14AWG+1*18AWG(16A) 3*10AWG+1*18AWG(32A): 2*9AWG+1*10AWG+1*18AWG(40A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator | |
| Communication Interface | Bluetooth ; WI-FI | |
| Working Environment | Working Temp.: | -22°F~+122°F |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | Type 4 for Controller Box; Type 4x for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20 | ||
| Dimension & Package | Control Box Size: | L281*W100*H66 mm / L11.06"*W3.94"*H2.60" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L410*W260*H200 mm / L16.14"*W10.24"*H7.87" | |
| Outer Carton: | L545*W430*H470 mm / L21.46"*W16.93"* H18.51" (4 pieces) | |
| Net Weight: | ≤ 5KG (1 pieces) | |
