Model:ZQ5

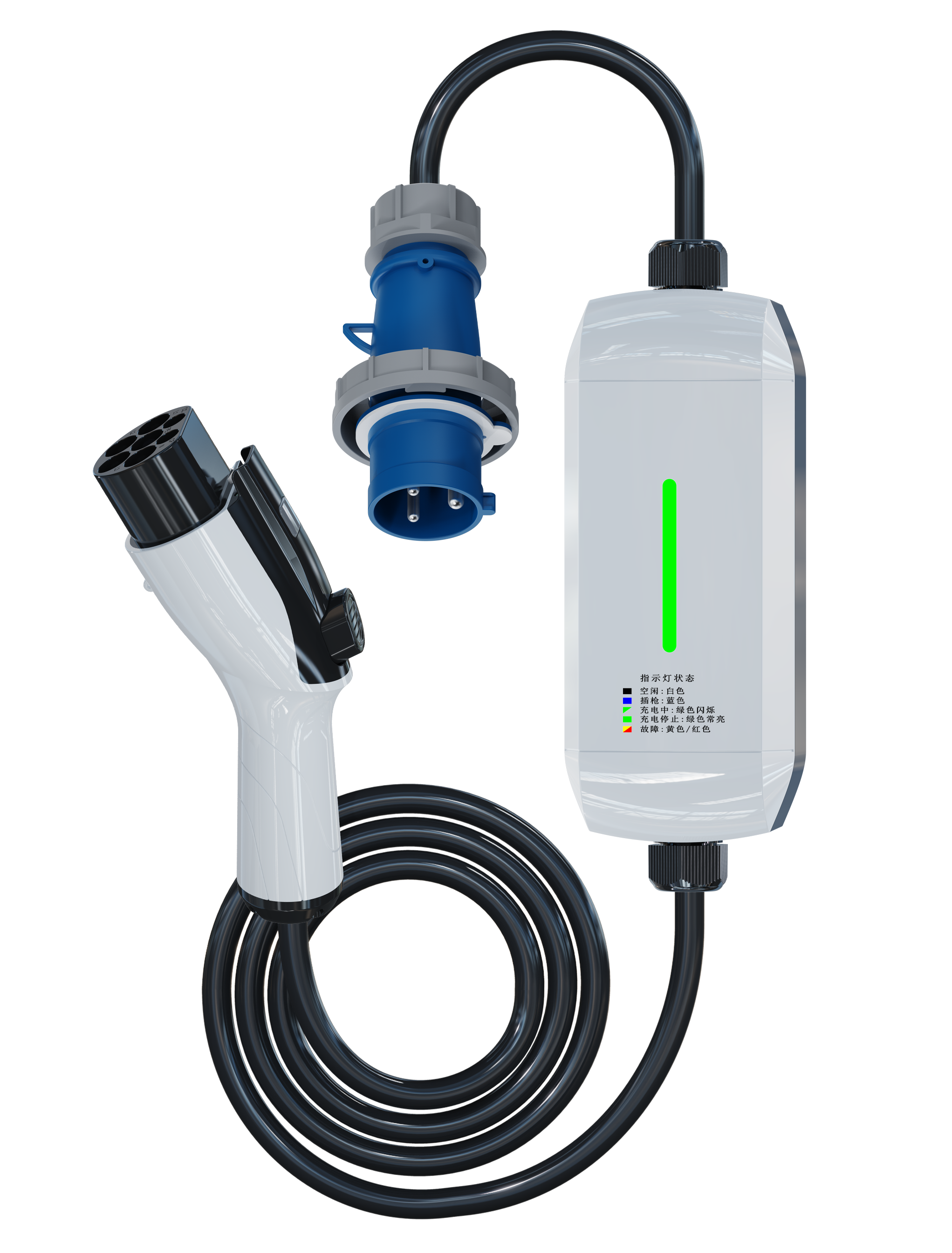

ZQ5，3.5kw/7kw/11kw/21kw EV Portable charging – compatible with multiple outlets
no data
Product Details
| Basic Information | Product Model: | ZQ5 Series ( 3.5KW / 7KW ) |
| Input Voltage: | 220Vac±15% | |
| Rated Current: | 16A / 32A | |
| Rated Power: | 3.5KW/16A;7KW/32A | |
| Power Supply: | 1 Phase | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | GB/T18487 | |
| Reference Standards: | GB/T18487、GB/T20234、GB/T34657 | |
| Power Plug: | Three-prong plug (16A), industrial plug (32A) | |
| Charging Cable: | 3x 2.5 mm2 ( 16A),3x 6.0 mm（32A） | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator | |
| Communication Interface | Bluetooth ; WI-FI | |
| Working Environment | Working Temp.: | -30°C~+50°C |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | ||
| Dimension & Package | Control Box Size: | L257.1*W184.5*H58 mm / |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L340*W210*H145 mm / | |
| Outer Carton: | L705*W445*H325 mm / | |
| Net Weight: | ≤ 5KG (1 pieces) | |
| Basic Information | Product Model: | ZQ5 Series ( 3.5KW / 7KW ) |
| Input Voltage: | 220Vac±15% | |
| Rated Current: | 16A / 32A | |
| Rated Power: | 3.5KW/16A;7KW/32A | |
| Power Supply: | 1 Phase | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | GB/T18487 | |
| Reference Standards: | GB/T18487、GB/T20234、GB/T34657 | |
| Power Plug: | Three-prong plug (16A), industrial plug (32A) | |
| Charging Cable: | 3x 2.5 mm2 ( 16A),3x 6.0 mm（32A） | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator | |
| Communication Interface | Bluetooth ; WI-FI | |
| Working Environment | Working Temp.: | -30°C~+50°C |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | ||
| Dimension & Package | Control Box Size: | L257.1*W184.5*H58 mm / |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L340*W210*H145 mm / | |
| Outer Carton: | L705*W445*H325 mm / | |
| Net Weight: | ≤ 5KG (1 pieces) | |
