Model:Q2

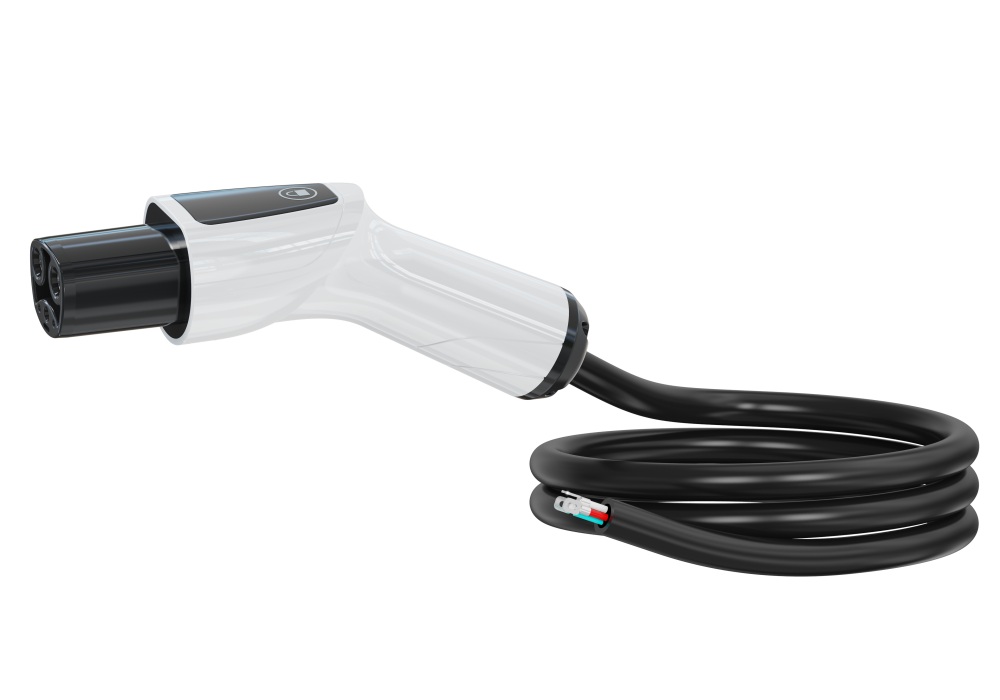

Q2, Type 2 AC connectors, TUV Certified, Customized line length

no data
Previous: No more data
Product Details
Electrical Parameters  Discharge Voltage: AC 230V/400V
Rate Current: 16A/32A MAX
Terminal Temp Rise: ＜50K
Withstand Voltage: 1500V
Material Parameters Case Material: PC+PA66+GF25%
Conductor: Copper alloy with silver plating
Cable Length: 5 Meter
Coupled Insertion Force： 45N<F<100N
No-Load Plugin/Out: >10,000 times
Environmental Parameters  Work Temperature: -30℃~+50°C
 Work Humidity: 5%~95%
Work Altitude: ≤ 2000 Meter
IP Code IP55 / IP65 (Optional)
Certification TUV-CE/CB/UKCA
Size&Package Product Size: L:217.8*W:108.0*H:60.0mm
 Inner Box: L:350.0*W:350.0*H:120.0mm
Outer Carton:(6 pieces) L:780.0*W:365.0*H:365.0mm
 Net Weight: (1 pieces) ≤ 4KG
Electrical Parameters  Discharge Voltage: AC 230V/400V
Rate Current: 16A/32A MAX
Terminal Temp Rise: ＜50K
Withstand Voltage: 1500V
Material Parameters Case Material: PC+PA66+GF25%
Conductor: Copper alloy with silver plating
Cable Length: 5 Meter
Coupled Insertion Force： 45N<F<100N
No-Load Plugin/Out: >10,000 times
Environmental Parameters  Work Temperature: -30℃~+50°C
 Work Humidity: 5%~95%
Work Altitude: ≤ 2000 Meter
IP Code IP55 / IP65 (Optional)
Certification TUV-CE/CB/UKCA
Size&Package Product Size: L:217.8*W:108.0*H:60.0mm
 Inner Box: L:350.0*W:350.0*H:120.0mm
Outer Carton:(6 pieces) L:780.0*W:365.0*H:365.0mm
 Net Weight: (1 pieces) ≤ 4KG
