Model:Z3C

3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station

Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Product Details
Basic Information Product Model:  Z3C Series (3.5KW / 7KW / 11KW / 21KW )
 Input Voltage: 220V/380V
 Rated Current: 16A/32A
Product Specification Charging Type: GBT
Charging Plug: GBT
Reference Standards: GB/T18487、GB/T20234、GB/T34567
Power Plug: NEMA 14-50;Hardwire -Copper pins
APP Control Share charging pile
  Select a Charging Mode
   Set Charging Current
User lnterface 4.3” LCD Indicator
Communication Interface Bluetooth ; Wl-Fl ; Ethernet ; 4G
Multiple application  RFlD Card ; QR Code
Working Environment Working Temp.: -30°C~+50°C
Humidity: 5~95% Non-Condensing
 IP Rate: IP55
Material Performance  Crushing Force: No Damage Under 5000N
 Shell: Fireproof PC
 Charging Plug Pin: Pure Copper Silver Plated
 Charging Cable: Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1
 Mechanical Life: >10,000 Times
Electrical Protection  Over current protection ; Residual current protection
 Ground protection ; Surge protection
 Over/Under voltage protection
Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20
Dimension & Package  Control Box Size: 249.8 X 384.8 X 125.9mm
Cable Length: 5Meter /16.4ft/ Customized
Outer Carton: 48.5*31*23 mm
Net Weight: ≤ 6.5KG (1 pieces)
Basic Information Product Model:  Z3C Series (3.5KW / 7KW / 11KW / 21KW )
 Input Voltage: 220V/380V
 Rated Current: 16A/32A
Product Specification Charging Type: GBT
Charging Plug: GBT
Reference Standards: GB/T18487、GB/T20234、GB/T34567
Power Plug: NEMA 14-50;Hardwire -Copper pins
APP Control Share charging pile
  Select a Charging Mode
   Set Charging Current
User lnterface 4.3” LCD Indicator
Communication Interface Bluetooth ; Wl-Fl ; Ethernet ; 4G
Multiple application  RFlD Card ; QR Code
Working Environment Working Temp.: -30°C~+50°C
Humidity: 5~95% Non-Condensing
 IP Rate: IP55
Material Performance  Crushing Force: No Damage Under 5000N
 Shell: Fireproof PC
 Charging Plug Pin: Pure Copper Silver Plated
 Charging Cable: Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1
 Mechanical Life: >10,000 Times
Electrical Protection  Over current protection ; Residual current protection
 Ground protection ; Surge protection
 Over/Under voltage protection
Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20
Dimension & Package  Control Box Size: 249.8 X 384.8 X 125.9mm
Cable Length: 5Meter /16.4ft/ Customized
Outer Carton: 48.5*31*23 mm
Net Weight: ≤ 6.5KG (1 pieces)
Related Products

3.5KW/7KW/11KW/22KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z3B

3.5KW/7KW/11KW/22KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code


Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z1B

Wall EV Charger Level 2, GBT Electric Vehicle Charging Station

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

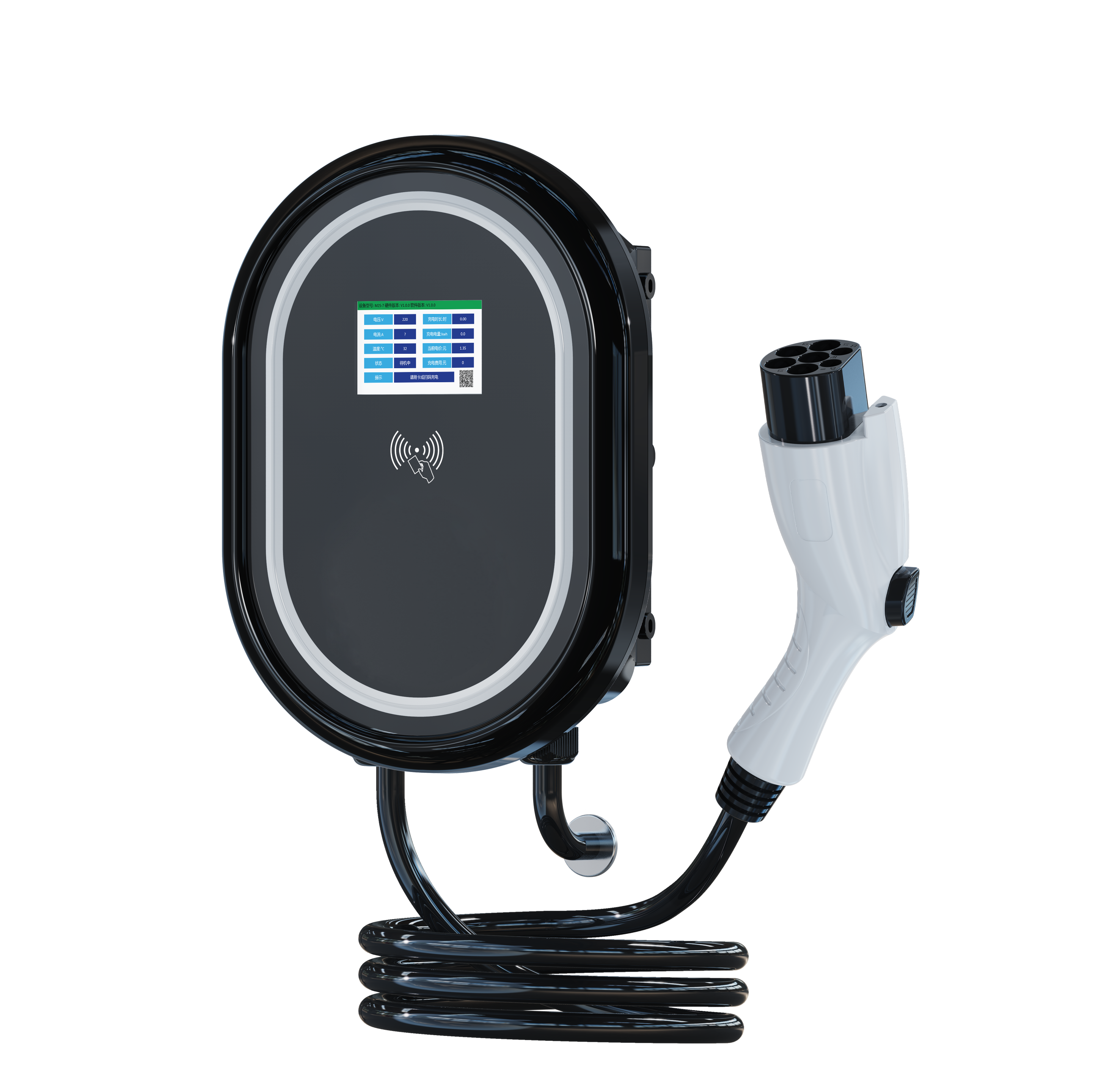

Z1B 黑色国标Q1.png
