Model:Z3F

Z3F, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code



Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code



Product Details
Basic Information Product Model:  Z3F Series (7.6KW / 9.6KW / 12KW )
 Input Voltage: 240Vac±15%
 Rated Current: 50A MAX
 Rated Power: 7.6KW/32A;9.6KW/40A;12KW/50A
Power Supply: Double Fire Line Wiring
Product Specification Charging Type: Level 2
Charging Plug: SAE J1772(Type 1)
Reference Standards: SAE J1772,UL2594,UL2231-2,NACS
Power Plug: NEMA 14-50;Hardwire -Copper pins
Charging Cable: 3*10AWG+1*18AWG(32A):
2*9AWG+1*10AWG+1*18AWG(40A)
2*8AWG+1*10AWG+1*18AWG(50A)
APP Control Share charging pile
Select a Charging Mode
 Set Charging Current
User lnterface 7” LCD Indicator
Communication Interface Bluetooth ; Wl-Fl ; Ethernet ; 4G
Multiple application  OCPP1.6J ; RFlD Card ; QR Code
Working Environment Working Temp.: -22°F~+122°F
Humidity: 5~95% Non-Condensing
 IP Rate: Type 4 for Controller Box; Type 4x for Charging Plug
Material Performance  Crushing Force: No Damage Under 5000N
 Shell: Fireproof PC
 Charging Plug Pin: Pure Copper Silver Plated
 Charging Cable: Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1
 Mechanical Life: >10,000 Times
Electrical Protection  Over current protection ; Residual current protection
 Ground protection ; Surge protection
 Over/Under voltage protection
Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20
Dimension & Package  Control Box Size: L384.8*W249.8*H125.8mm / L15.15"*W9.83"*H4.95
Cable Length: 5Meter /16.4ft/ Customized
Inner Box: L485*W310*H230 mm / L19.09"*W12.21"*H9.06"
Outer Carton: L650*W505*H265 mm / L25.59"*W19.88"* H10.43" (2 pieces）
Net Weight: ≤ 7.5KG (1 pieces)
Basic Information Product Model:  Z3F Series (7.6KW / 9.6KW / 12KW )
 Input Voltage: 240Vac±15%
 Rated Current: 50A MAX
 Rated Power: 7.6KW/32A;9.6KW/40A;12KW/50A
Power Supply: Double Fire Line Wiring
Product Specification Charging Type: Level 2
Charging Plug: SAE J1772(Type 1)
Reference Standards: SAE J1772,UL2594,UL2231-2,NACS
Power Plug: NEMA 14-50;Hardwire -Copper pins
Charging Cable: 3*10AWG+1*18AWG(32A):
2*9AWG+1*10AWG+1*18AWG(40A)
2*8AWG+1*10AWG+1*18AWG(50A)
APP Control Share charging pile
Select a Charging Mode
 Set Charging Current
User lnterface 7” LCD Indicator
Communication Interface Bluetooth ; Wl-Fl ; Ethernet ; 4G
Multiple application  OCPP1.6J ; RFlD Card ; QR Code
Working Environment Working Temp.: -22°F~+122°F
Humidity: 5~95% Non-Condensing
 IP Rate: Type 4 for Controller Box; Type 4x for Charging Plug
Material Performance  Crushing Force: No Damage Under 5000N
 Shell: Fireproof PC
 Charging Plug Pin: Pure Copper Silver Plated
 Charging Cable: Pure Copper Core with Cable Jacket ; Flame Retardant Grade VW-1
 Mechanical Life: >10,000 Times
Electrical Protection  Over current protection ; Residual current protection
 Ground protection ; Surge protection
 Over/Under voltage protection
Over temp protection ; Leakage protection Type A (AC 30mA) / CCID-20
Dimension & Package  Control Box Size: L384.8*W249.8*H125.8mm / L15.15"*W9.83"*H4.95
Cable Length: 5Meter /16.4ft/ Customized
Inner Box: L485*W310*H230 mm / L19.09"*W12.21"*H9.06"
Outer Carton: L650*W505*H265 mm / L25.59"*W19.88"* H10.43" (2 pieces）
Net Weight: ≤ 7.5KG (1 pieces)
Related Products

Z3A, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z3A

Z3A, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code

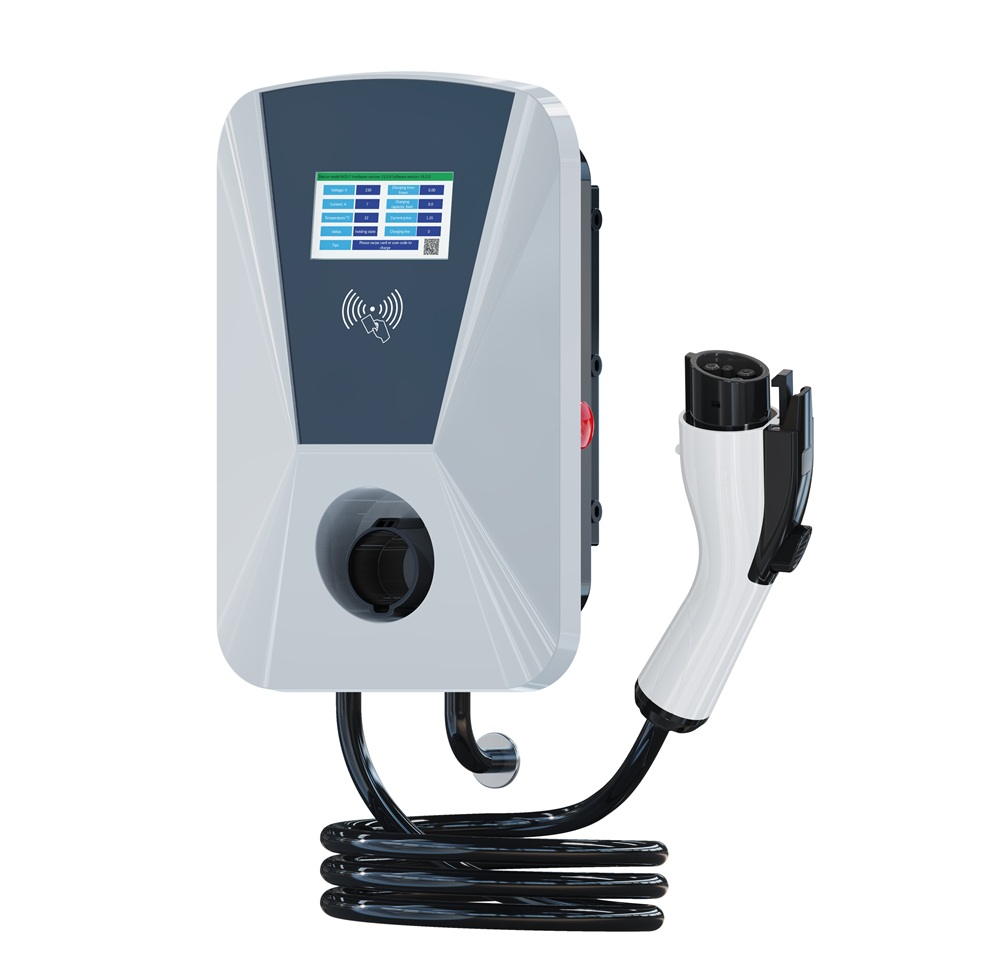

Z3B, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z3B

Z3B, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

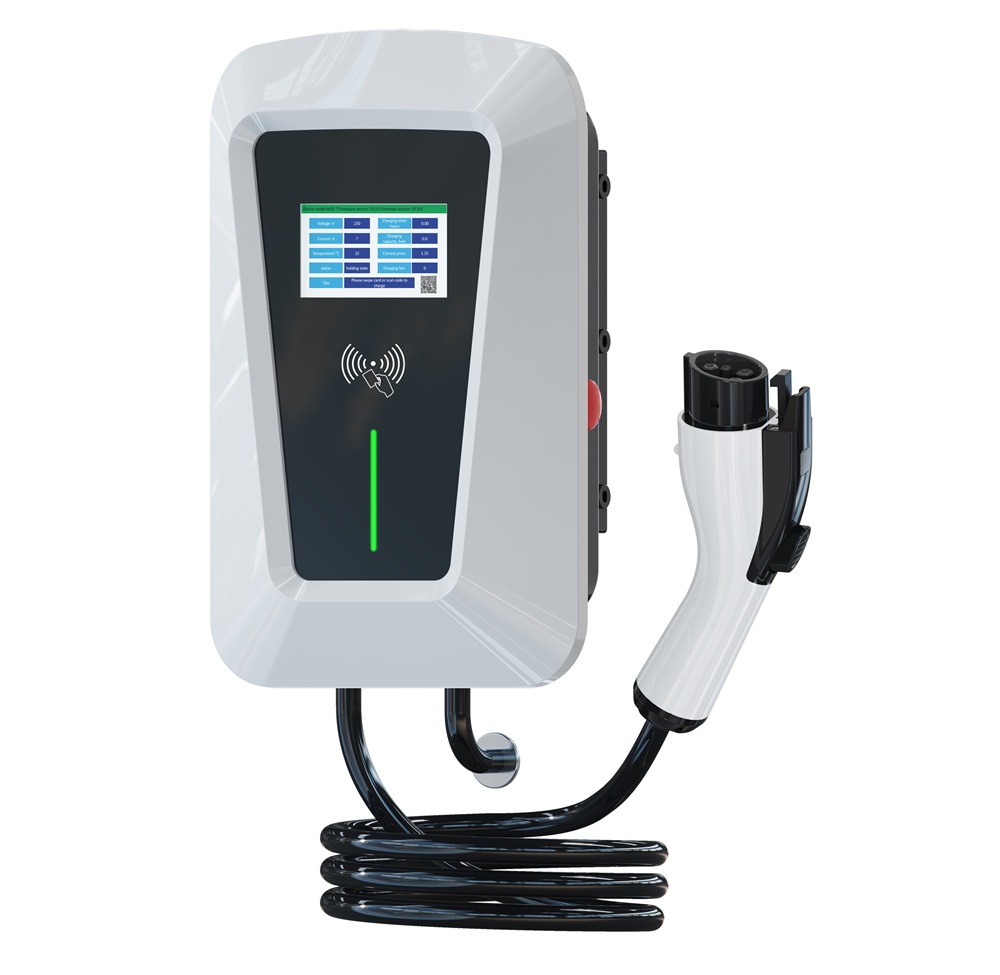

Z3C, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z3C

Z3C, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code

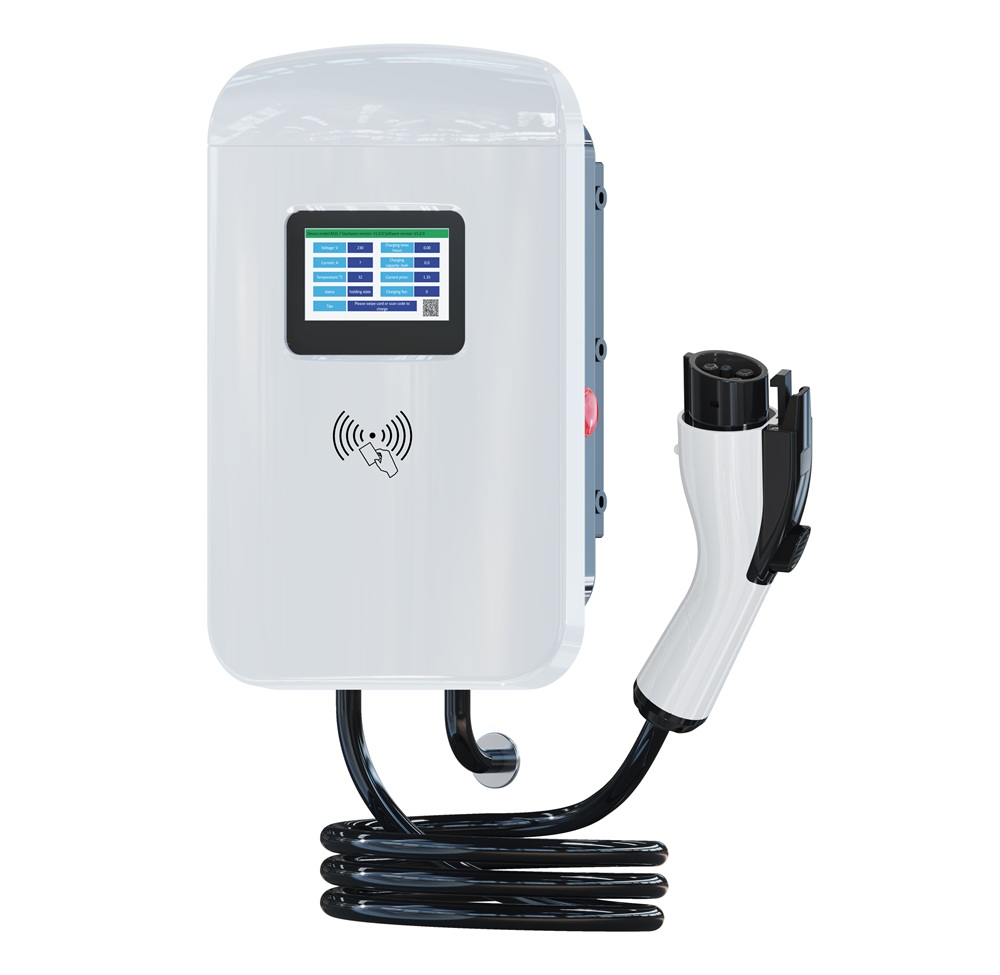

Z3D, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z3D

Z3D, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code

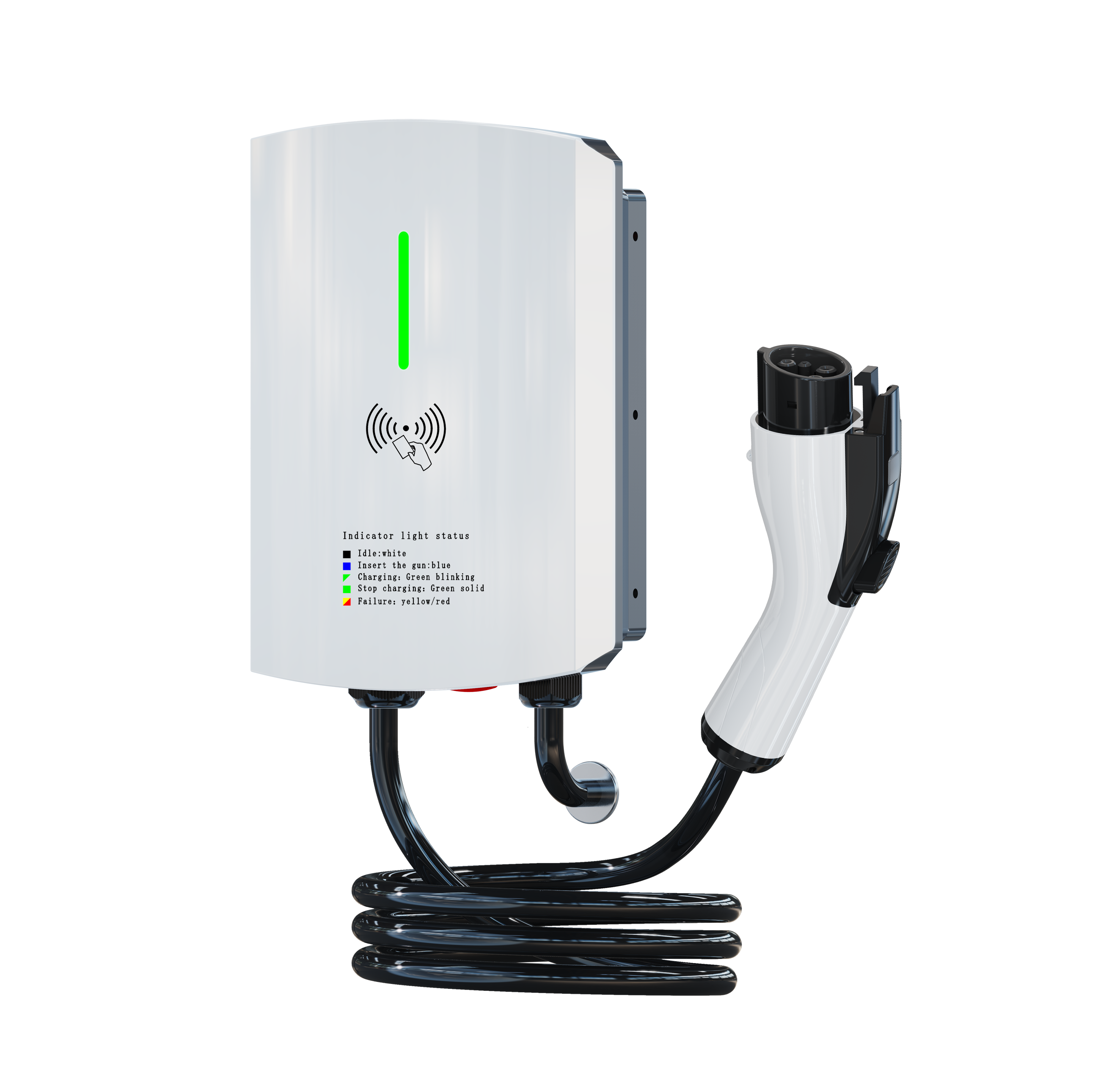

Z6E, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z6E

Z6E, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

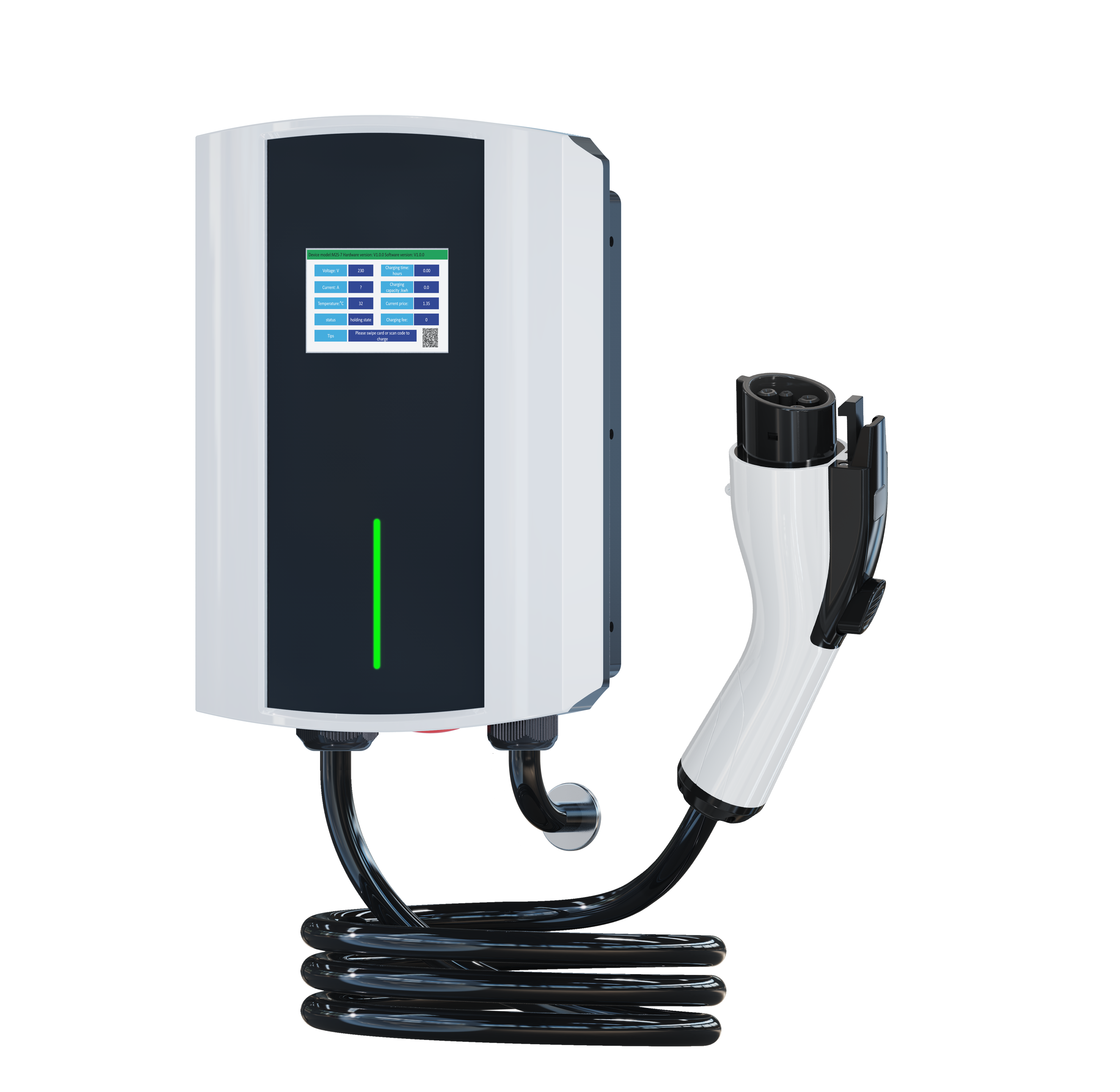

Z6C, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z6C

Z6C, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

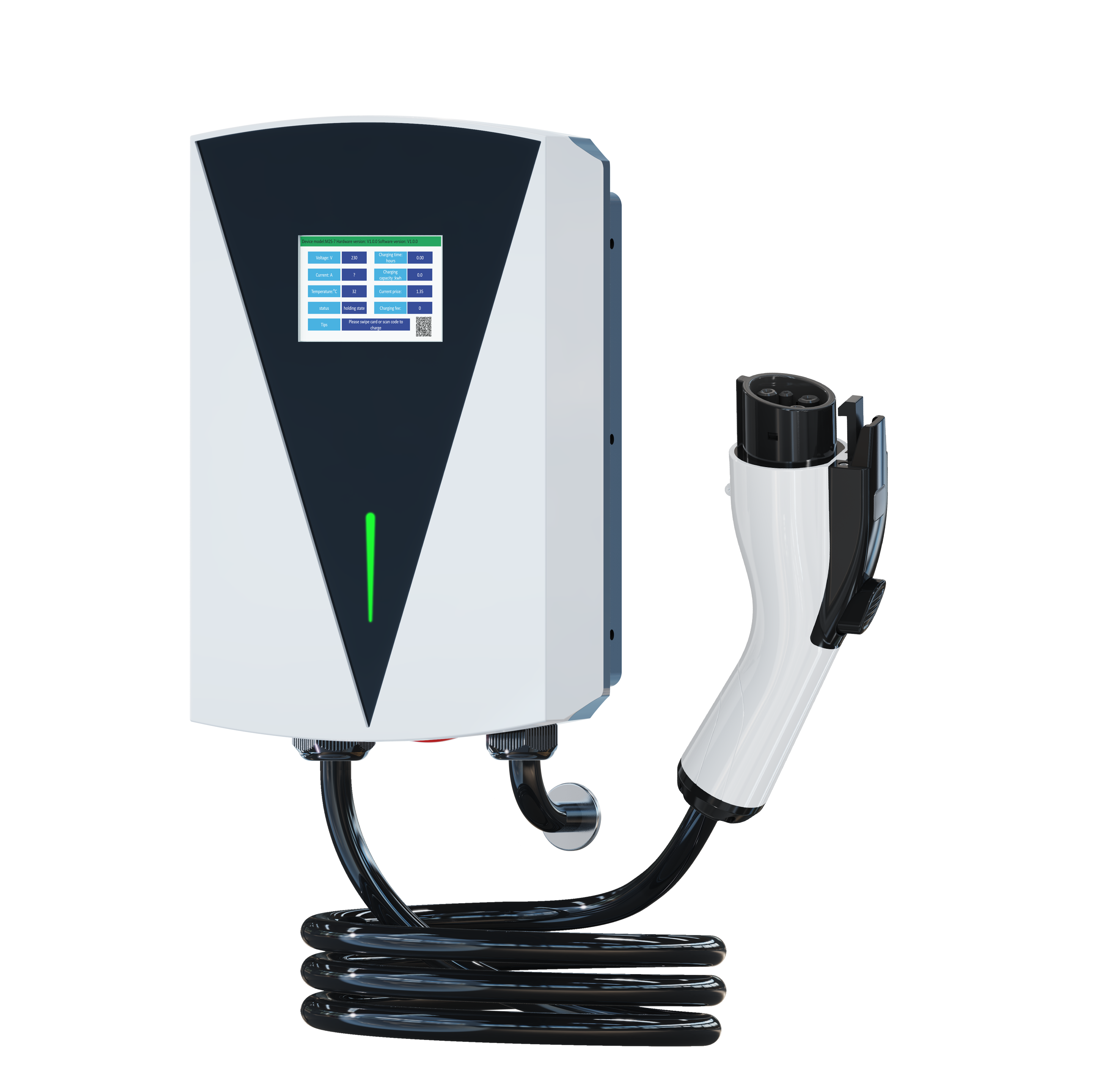

Z6A, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z6A

Z6A, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

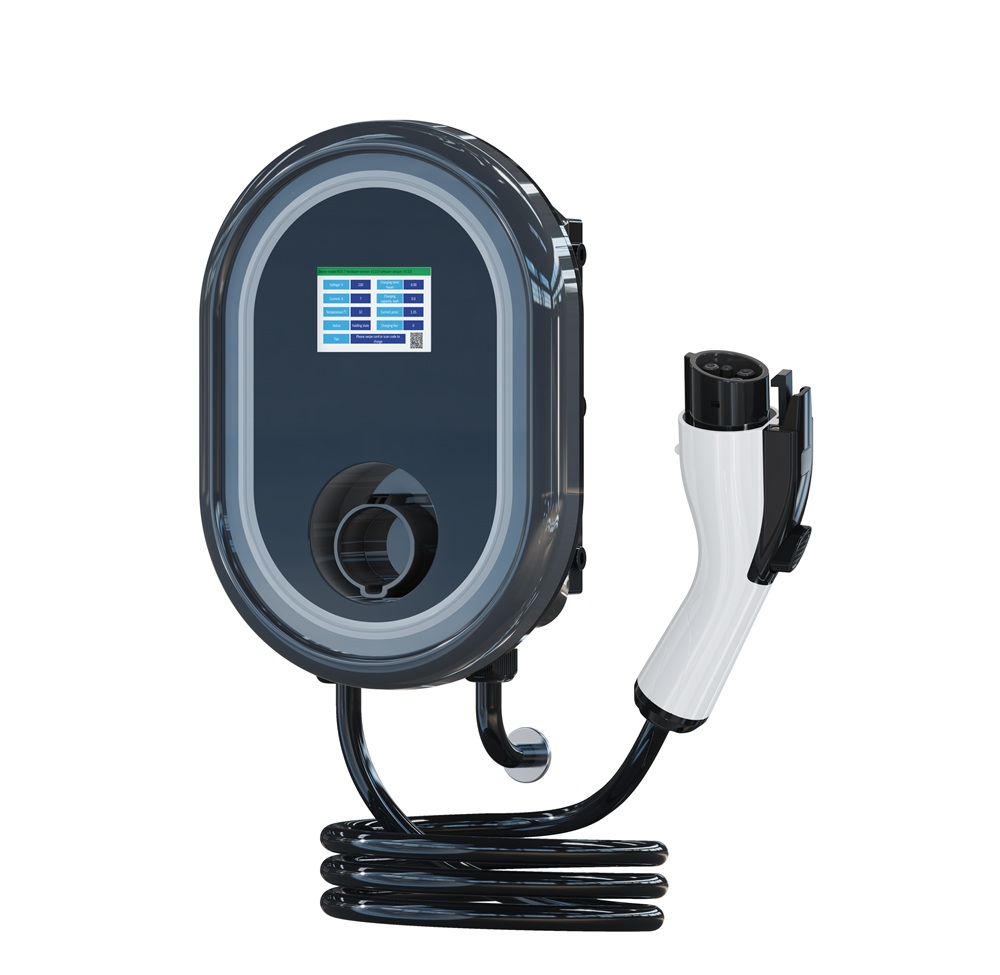

Z1A, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger-Z1A

Z1A, 7kw/9.6kw/12kw wall-mounted charging pile with plug, Level 2 EV Charger

Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

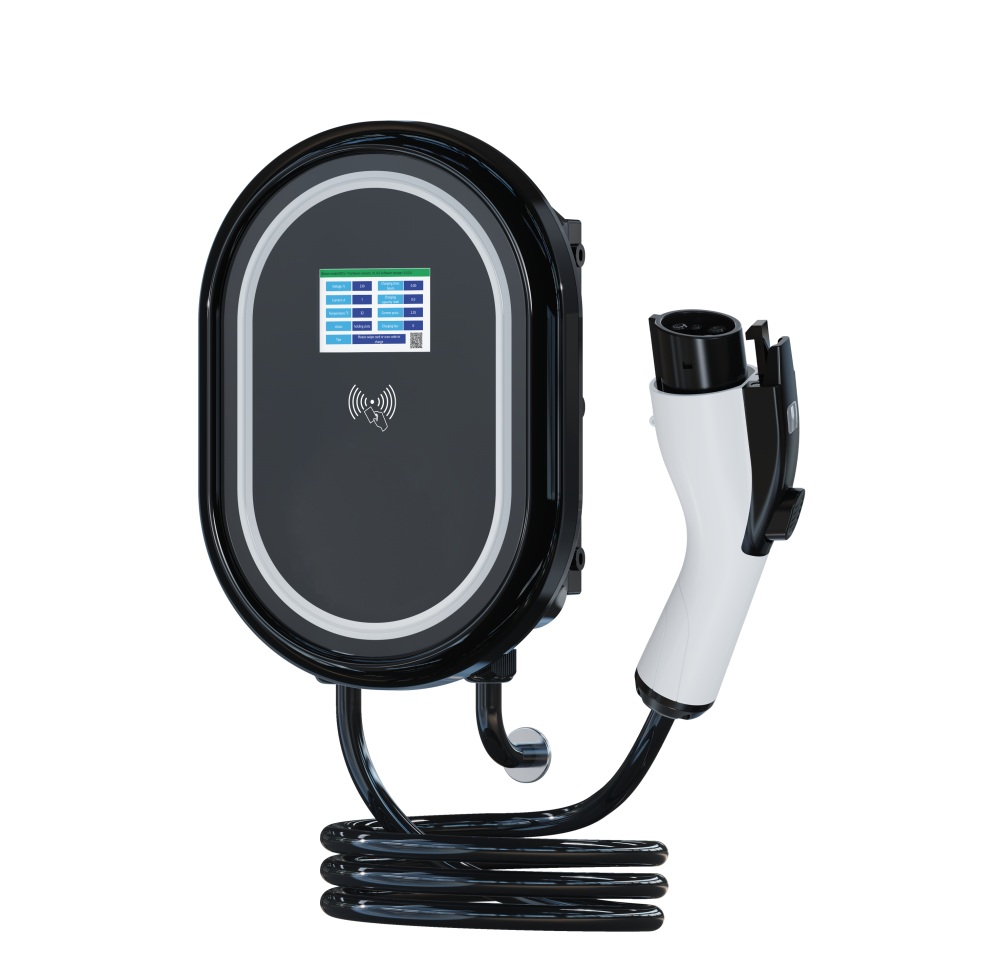

Z1B 黑色美标.JPG
