Model:Z7A
Z7A, 3.5kw/7kw/11kw/21kw EV Portable charging – compatible with multiple outlets
no data
Product Details
| Basic Information | Product Model: | Z7A Series ( 3.5KW / 7KW / 11KW / 22KW ) |
| Input Voltage: | 230Vac±15% / 400Vac±15% | |
| Rated Current: | 16A / 32A | |
| Rated Power: | 3.5KW/16A;7KW/32A;11KW/16A:22KW/32A | |
| Power Supply: | 1 Phase / 3 Phase | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | IEC 62196-2 (Type 2) | |
| Reference Standards: | IEC 61851-1、IEC 62752、IEC 62196-2 | |
| Power Plug: | Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase / CEE Red -5 Pin-16A- 3Phase / CEE Red -5 Pin-32A-3Phase |
|
| Charging Cable: | 3 x 2.5 mm2 + 1 x 0.5 mm2 ( 1 Phase/16A) 3 x 6.0 mm2 + 1 x 0.5 mm2 ( 1 Phase/ 32A) 5 x 2.5 mm2 + 1 x 0.5 mm2 ( 3 Phase/16A) 5 x 6.0 mm2 + 1 x 0.5 mm2 ( 3 Phase/32A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator + 1.3” OLED Indicator | |
| Communication Interface | Bluetooth ; WI-FI | |
| Working Environment | Working Temp.: | -30°C~+50°C |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | ||
| Dimension & Package | Control Box Size: | L281*W100*H66 mm / L11.06"*W3.94"*H2.60" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L410*W260*H200 mm / L16.14"*W10.24"*H7.87" | |
| Outer Carton: | L545*W430*H470 mm / L21.46"*W16.93"* H18.51" (4 pieces) | |
| Net Weight: | ≤ 5KG (1 pieces) | |
| Basic Information | Product Model: | Z7A Series ( 3.5KW / 7KW / 11KW / 22KW ) |
| Input Voltage: | 230Vac±15% / 400Vac±15% | |
| Rated Current: | 16A / 32A | |
| Rated Power: | 3.5KW/16A;7KW/32A;11KW/16A:22KW/32A | |
| Power Supply: | 1 Phase / 3 Phase | |
| Product Specification | Charging Type: | Level 2 |
| Charging Plug: | IEC 62196-2 (Type 2) | |
| Reference Standards: | IEC 61851-1、IEC 62752、IEC 62196-2 | |
| Power Plug: | Type F 16A-1 Phase / CEE Blue-3 Pin-32A-1 Phase / CEE Red -5 Pin-16A- 3Phase / CEE Red -5 Pin-32A-3Phase |
|
| Charging Cable: | 3 x 2.5 mm2 + 1 x 0.5 mm2 ( 1 Phase/16A) 3 x 6.0 mm2 + 1 x 0.5 mm2 ( 1 Phase/ 32A) 5 x 2.5 mm2 + 1 x 0.5 mm2 ( 3 Phase/16A) 5 x 6.0 mm2 + 1 x 0.5 mm2 ( 3 Phase/32A) |
|
| APP Control | Share charging pile | |
| Select a Charging Mode | ||
| Set Charging Current | ||
| User lnterface | LED Indicator + 1.3” OLED Indicator | |
| Communication Interface | Bluetooth ; WI-FI | |
| Working Environment | Working Temp.: | -30°C~+50°C |
| Humidity: | 5~95% Non-Condensing | |
| IP Rate: | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Material Performance | Crushing Force: | No Damage Under 5000N |
| Shell: | Fireproof PC | |
| Charging Plug Pin: | Pure Copper Silver Plated | |
| Charging Cable: | Pure Copper Core with TPU Cable Jacket ; Flame Retardant Grade UL94V-0 | |
| Mechanical Life: | >10,000 Times | |
| Electrical Protection | Over current protection ; Residual current protection | |
| Ground protection ; Surge protection | ||
| Over/Under voltage protection | ||
| Over temp protection ; Leakage protection Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | ||
| Dimension & Package | Control Box Size: | L281*W100*H66 mm / L11.06"*W3.94"*H2.60" |
| Cable Length: | 5Meter /16.4ft/ Customized | |
| Inner Box: | L410*W260*H200 mm / L16.14"*W10.24"*H7.87" | |
| Outer Carton: | L545*W430*H470 mm / L21.46"*W16.93"* H18.51" (4 pieces) | |
| Net Weight: | ≤ 5KG (1 pieces) | |
Related Products

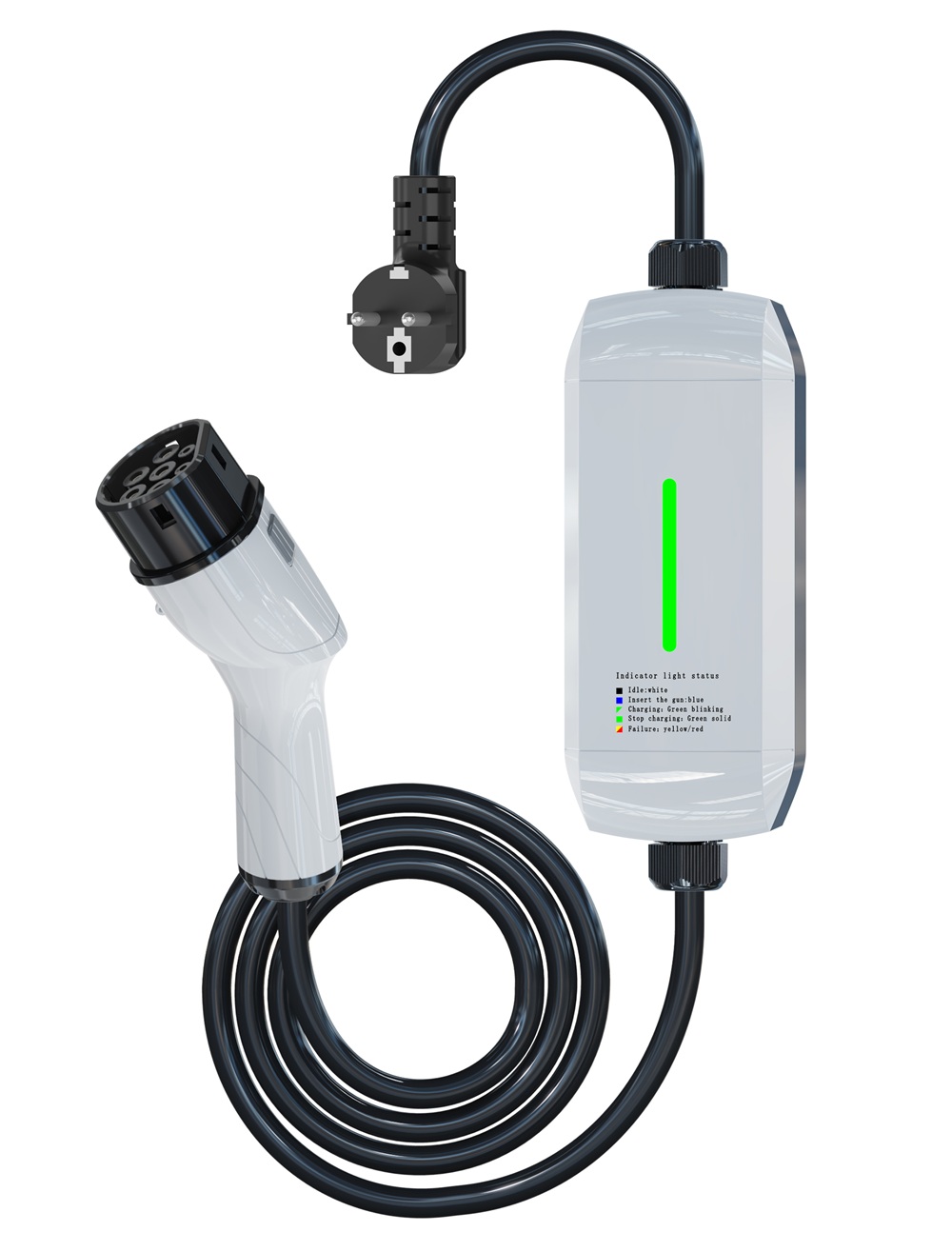

Z7B, 3.5kw/7kw/11kw/21kw EV Portable charging – compatible with multiple outlets-Z7B
